What is MergeStat? #

MergeStat is an open-source tool that enables SQL queries on the tools and processes involved in building and shipping software. It allows you to treat your code and configuration files like a database to operationalize aspects of the software development lifecycle (SDLC). MergeStat can run on most infrastructure and is fully self-deployable, ensuring security and privacy

Initially, MergeStat was a project known as Gitqlite. It aimed to streamline the process of querying historical data in code repositories by melding SQLite and Git.

MergeStat is about garnering insights from information that may be spread across different codebases and developer teams.

What is DevZero? #

DevZero is a cloud-based development platform that offers developers the ability to create and manage their own development environments quickly and easily. It allows developers to develop and test their applications in environments that closely resemble the production environment, helping them ship code faster with more confidence.

Learn more about DevZero and why you should check it out

Using MergeStat with DevZero to calculate Metrics #

1. If you haven’t yet, Create a DevZero account with our simple Get Started flow.

2. Check here for more information on how to create and set up your DevZero account and customize it further.

3. Once signed in to DevZero Console, Create a copy of MergeStat template using this link or from the dashboard.

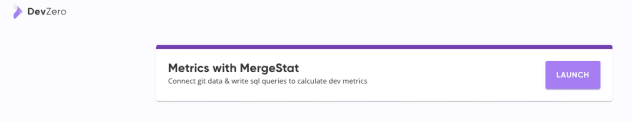

Metrics with MergeStat DevZero Template

Launch MergeStat with DevZero

4. Click Launch and it will take you to your console where it starts creating your workspace.

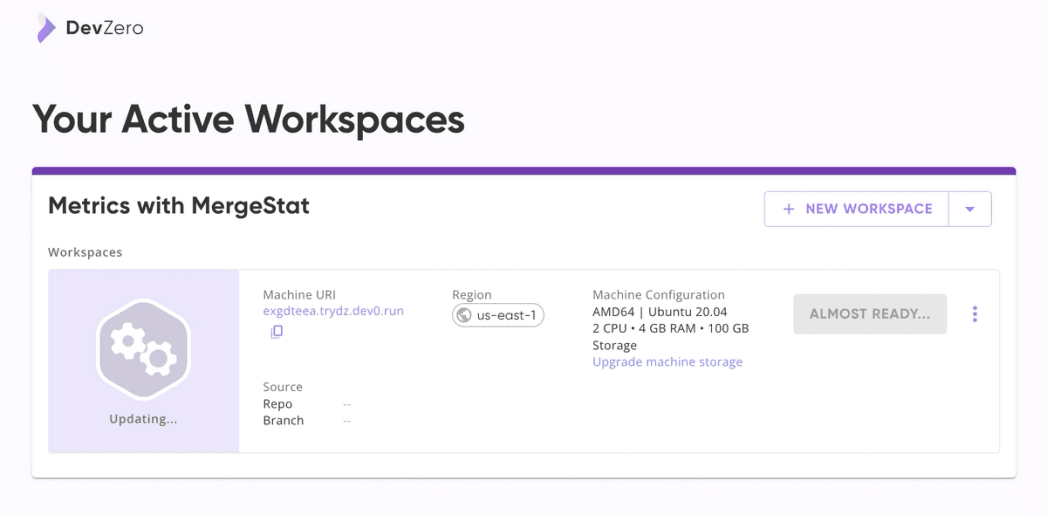

MergeStat workspace creation in progress

MergeStat workspace build in progress

5. After a few minutes, your development environment with MergeStat is ready to go.

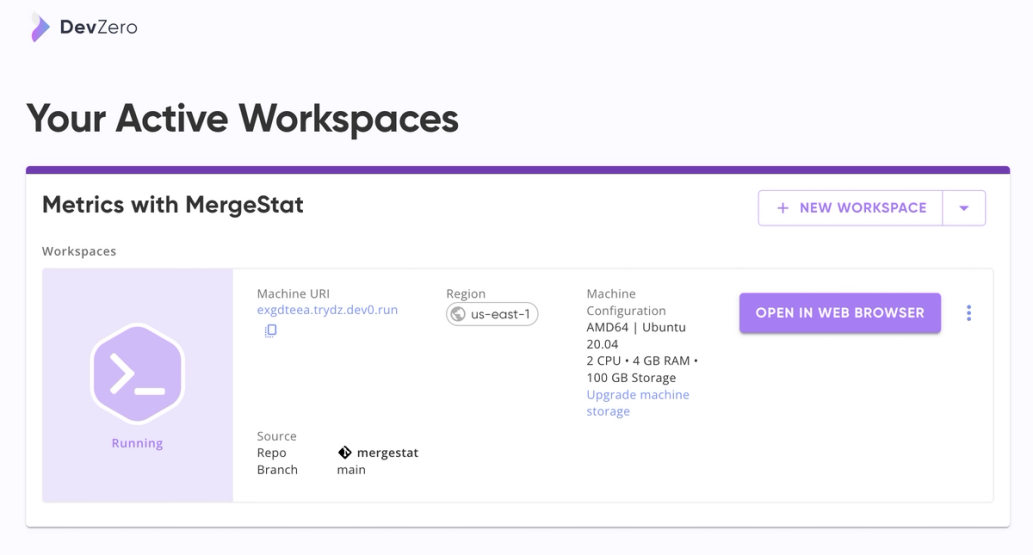

Mergestat workspace is ready

MergeStat in DevZero is ready

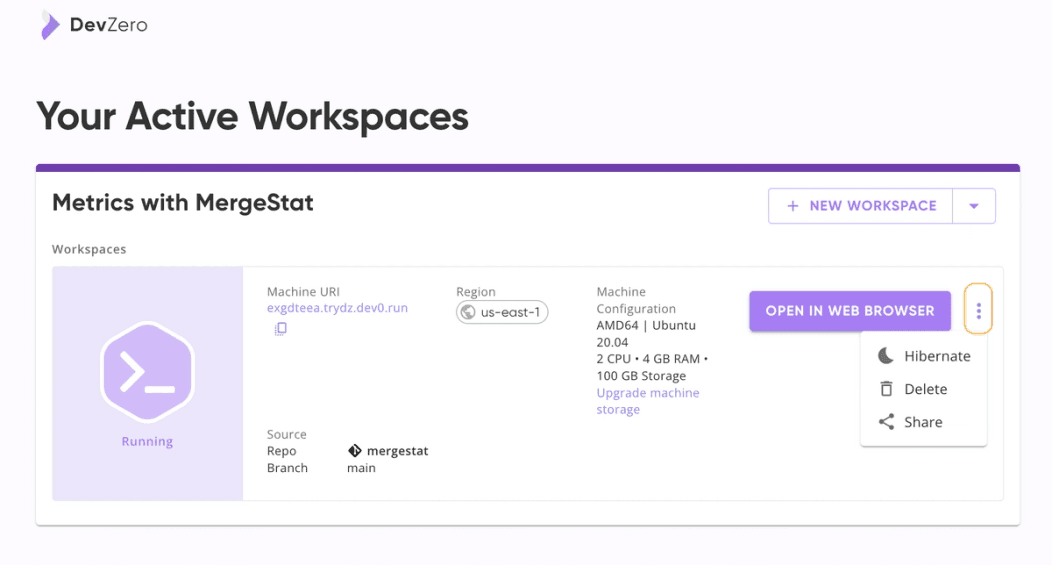

6. Your environment is now set up and you are ready to go. Click on the 3 dots and select Share

Share MergeStat

Share MergeStat

7. Select port 3300 and then click Create link

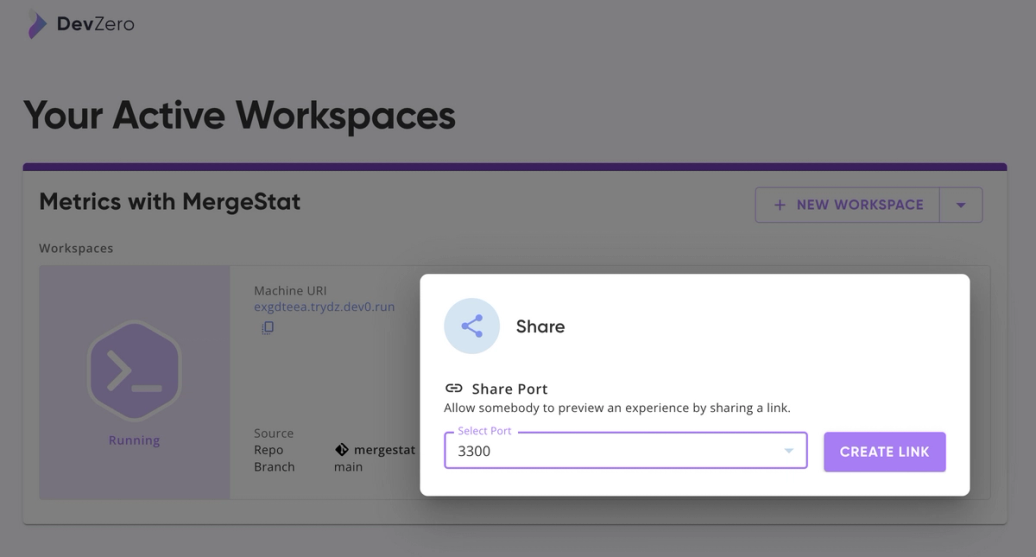

Sharelink creation

Share link creation

Make a note of this link as you will need it later.

8. Select Open in Web Browser . You should see your environment fully set up.

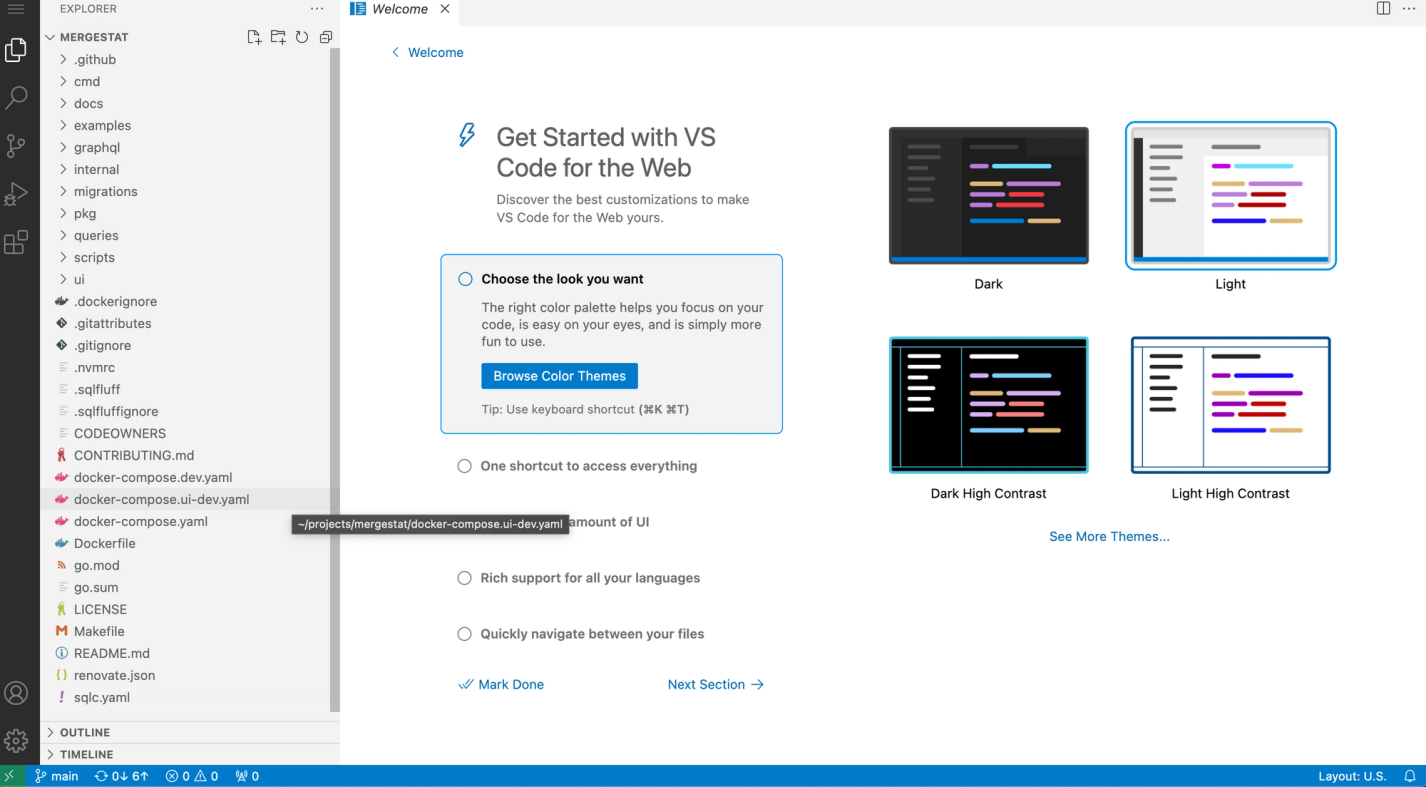

MergeStat Template in VS Code Server

MergeStat Template in VS Code for the Web

9. Open Terminal from the UI or with the shortcut (Ctrl + ` OR CMD+Shift+`)

10. Make sure you are already in the mergestat folder and if not, navigate to the mergestat project folder

cd /home/devzero/projects/mergestatCopy

11. Now, as mergestat mentions in their Getting Started guide, run the command

docker-compose upCopy

docker compose up

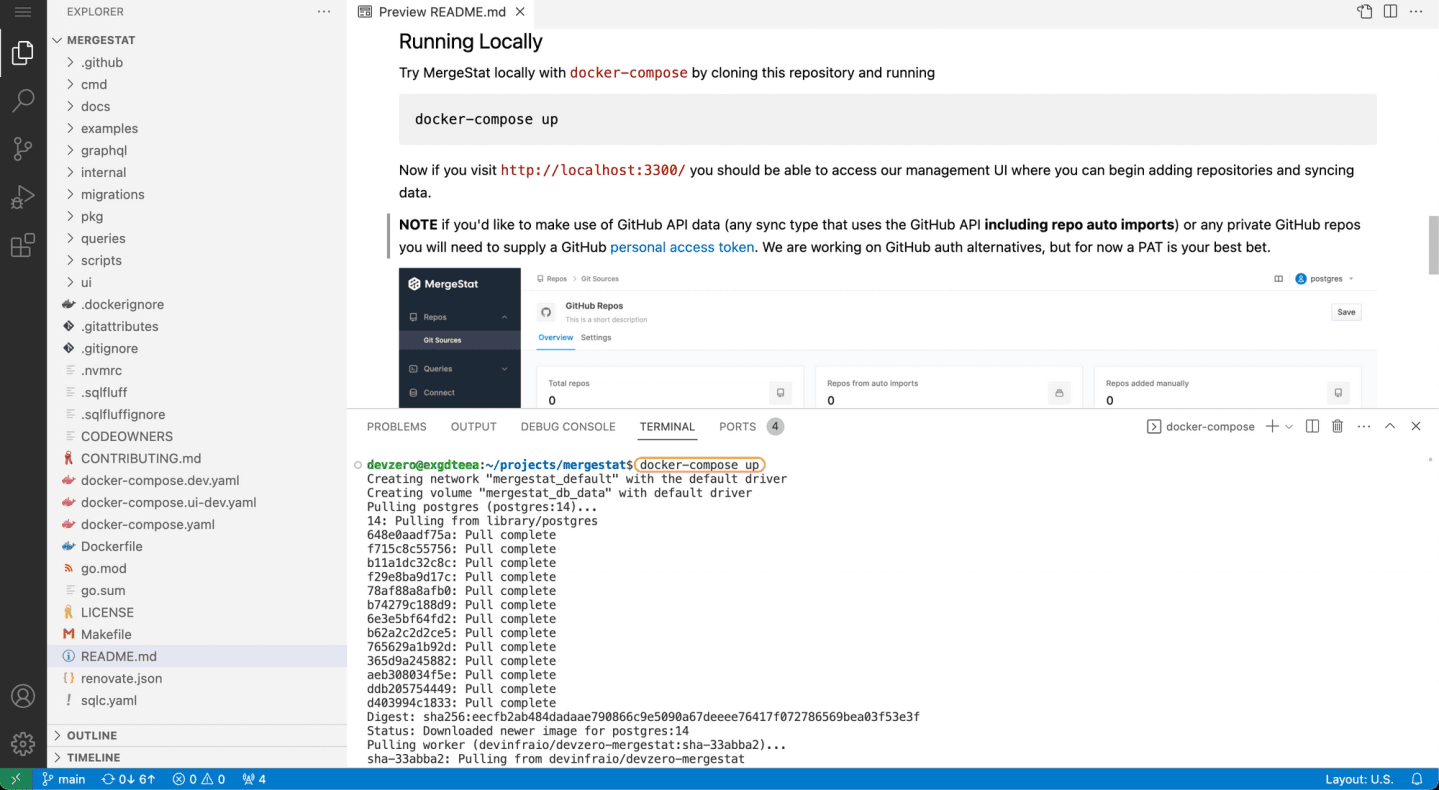

running docker-compose up

12. When the app is up, go to the share link you created in Step 8.

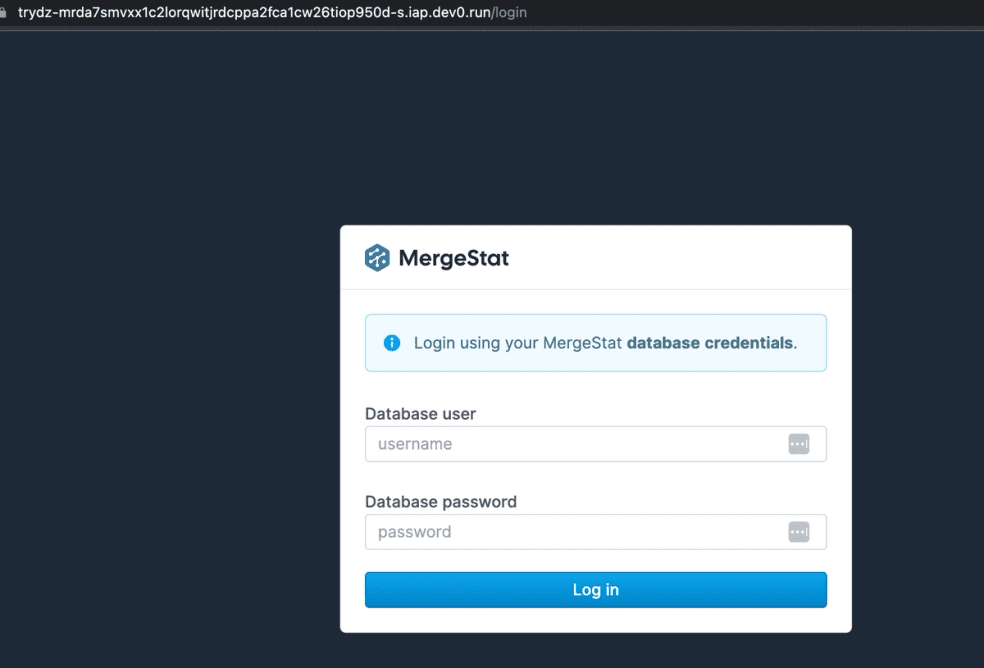

Mergestat login page

MergeStat Login Page

Login with the following credentials

Database user: postgres

Database password: passwordCopy

13. Once logged in, you should be able to access the MergeStat UI.

You ca check the queries for metrics under Queries -> Saved Queries

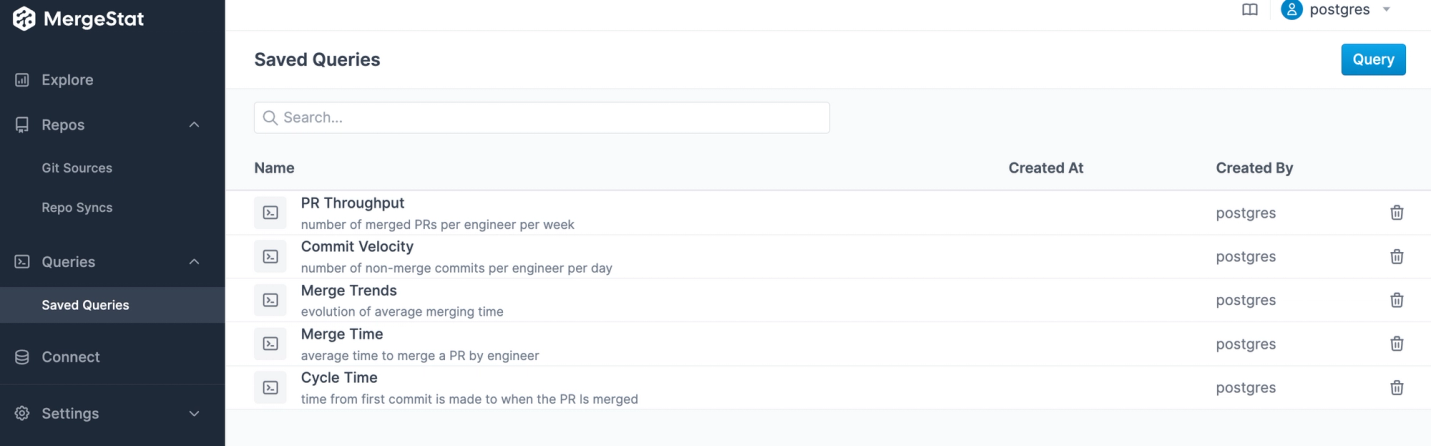

Metrics Queries in Saved Queries

Queries to calculate various metrics pre-populated in saved queries

14. In order to run any queries, you first need to add a Git Source and Repos.

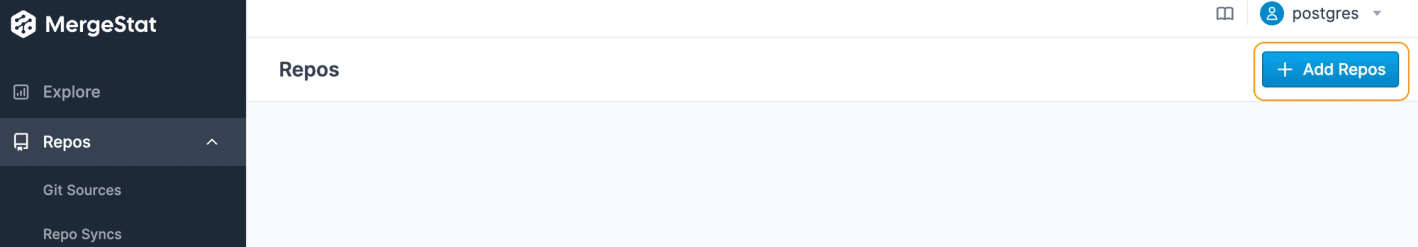

Adding a new repo

Add a new git source

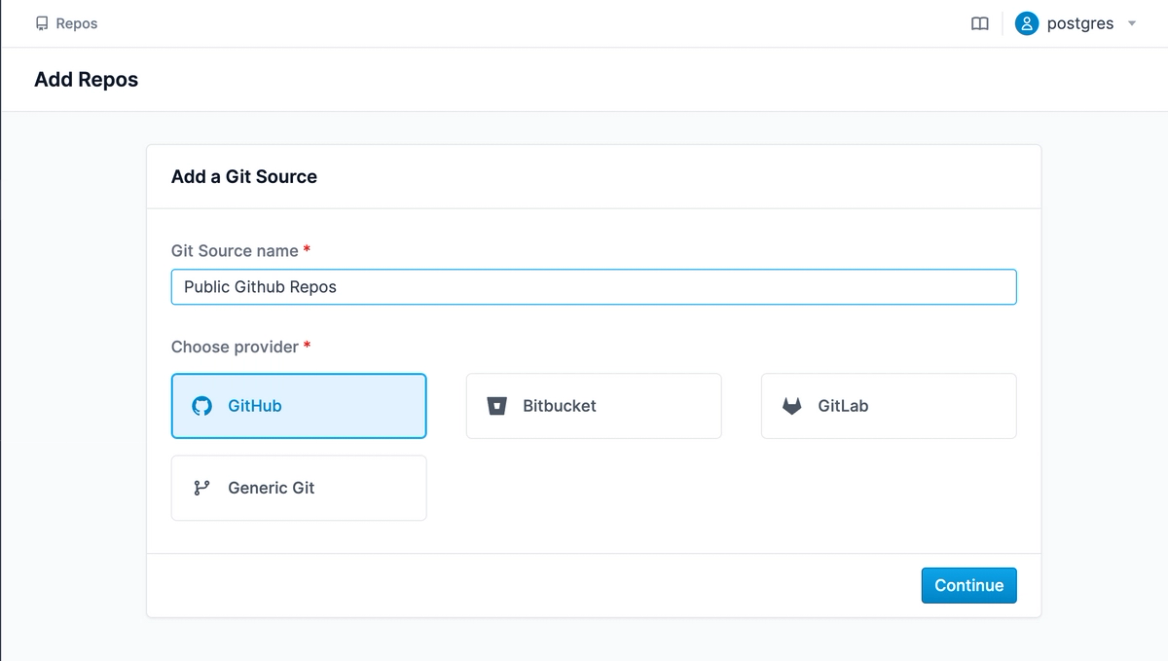

Add a Git Source

Adding a git source

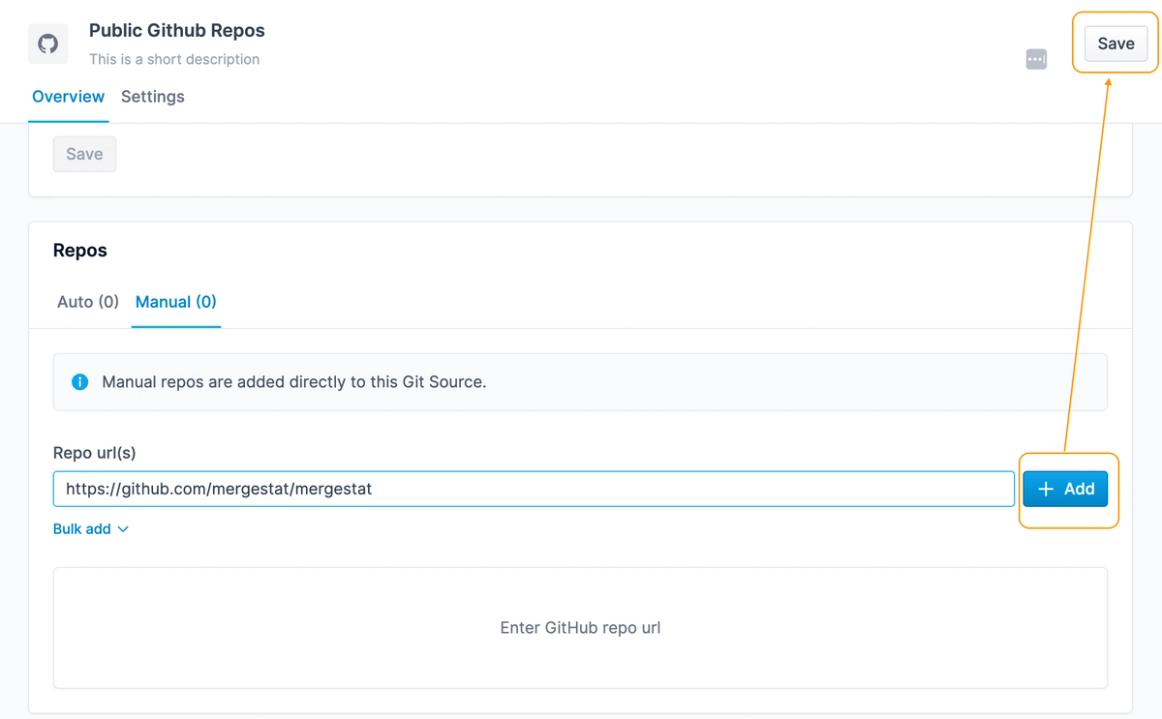

Then, add any repo URL you want to analyze and save.

Blog Image

Add repo url and save

NOTE: if you'd like to make use of GitHub API data (any sync type that uses the GitHub API including repo auto imports) or any private GitHub repos you will need to supply a GitHub personal access token.

15. Following the instructions here, add your PAT with necessary permissions based on if you provided a public or private repository URL.

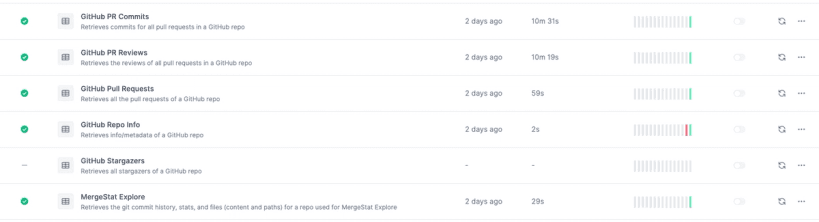

16. Then, click on the added repo and sync the data you are interested in. For the metrics queries we have in saved queries, you would require data from the following syncs as shown in the image.

Blog Image

repo syncs

Once the data is synchronized, proceed to saved queries, run them and check the results for yourself. You can add your own queries or modify existing queries.

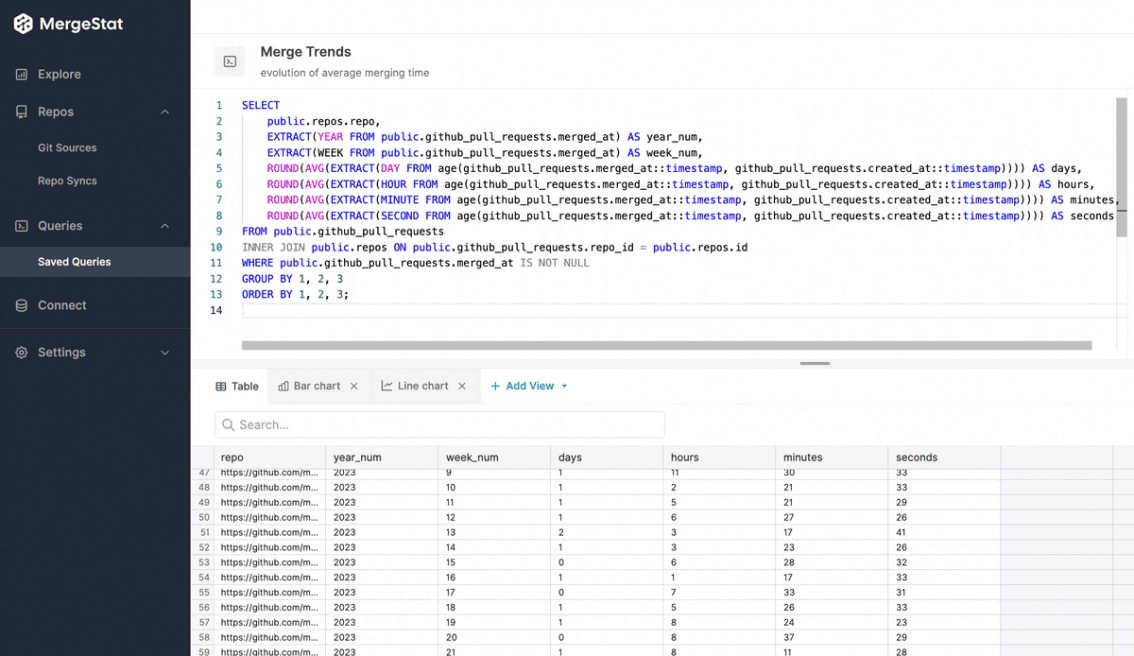

Example of running a query in mergestat

analyzing merge trends for the mergestat repo

How to contribute to MergeStat using DevZero? #

If you are interested in contributing to MergeStat project, the DevZero environment you created will be able to help. All you need to do is check out the contributing.md file and follow the instructions.

Conclusion #

By measuring these metrics and utilizing the features and benefits of MergeStat and DevZero, you can gain valuable insights into your development team's productivity and make informed decisions to improve their performance.
